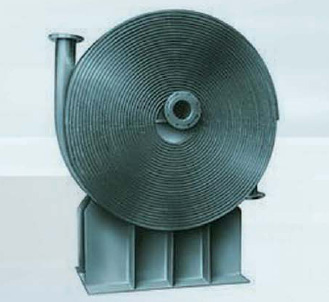

| 卧式螺旋板式换热器（II） |
螺旋板式换热器是一种高效换热器设备,适用汽－汽、汽－液、液－液，对液传热。它适用于化学、石油、溶剂、医药、食品、轻工、纺织、冶金、轧钢、焦化等行业。按 结构形式可分为 不可拆式（Ⅰ型）螺旋板式及可拆式（Ⅱ型、Ⅲ型）螺旋 板式换热器。
结构及性能
1、本设备由两张卷板卷制而成，形成了两个均匀的螺旋通道，两种传热介质可进行全逆流流动，大大增强了换热效果，即使两种小温差介质，也能达到理想的换热效果。
2、在壳体上的接管采用切向结构，局部阻力小，由于螺旋通道的曲率是均匀的，液体在设备内流动没有大的转向，总的阻力小，因而可提高设计流速使之具备较高的传热能力。
3、I型不可拆式螺旋板式换热器螺旋通道的端面采用焊接密封，因而具有较高的密封性。
4、II型可拆式螺旋板换热器结构原理与不可拆式换热器基本相同，但其中一个通道可拆开清洗，特别适用有粘性、有沉淀液体的热交换。
5、III型可拆式螺旋板换热器结构原理与不可拆式换热器基本相同，但其两个通道可拆开清洗，适用范围较广。
6、螺旋板式换热器按公称压力可分为PN0.6、1.0、1.6、2.5MPa（系指单通道能承受的较大工作压力）。按材质可分为碳素钢和不锈钢。用户可根据实际工艺情况选用。
7、单台设备不能满足使用要求时，可以多台组合使用，但组合时必须符合下列规定：并联组合、串联组合、设备和通道间距相同。混合组合：一个通道并联，一个通道串联。
部分规格换热器列举如下：
不锈耐酸钢制PN0.6、1.6MPa不可拆式（I型）螺旋板换热器碳素钢制Pg6、16kg/cm2不可拆式（I型）螺旋板换热器
|
公称换热面积m2 |
通道间距mm |
计算
换热面积
m2 |
流 速
1m/ces时
处理量m3/h |
接管公称直径 |
型 号 |
重量(kg) |
|
I 6B型 |
I 16B型 |
|
1 |
6 |
1.0 |
3.89 |
40 |
I 6,I 16B1-0.2/300-6 |
44 |
50 |
|
2 |
6 |
2.1 |
3.89 |
40 |
I 6,I 16B2-0.2/400-6 |
78 |
85 |
|
4 |
6 |
4.4 |
8.2 |
50 |
I 6,I 16B4-0.4/400-6 |
131 |
135 |
|
10 |
4.5 |
17.3 |
80 |
I 6,I 16B4-0.5/450-10 |
129 |
133 |
|
10 |
4.8 |
13.7 |
70 |
I 6,I 16B4-0.4/500-10 |
161 |
205 |
|
8 |
6 |
7.3 |
8.21 |
50 |
I 6,I 16B8-0.4/500-6 |
212 |
215 |
|
10 |
7.85 |
17.3 |
80 |
I 6,I 16B8-0.5/550-10 |
235 |
273 |
|
10 |
7.3 |
20.90 |
80 |
I 6,I 16B8-0.6/500-10 |
237 |
275 |
|
10 |
6 |
11.1 |
8.21 |
50 |
I 6,I 16B10-0.4/600-6 |
295 |
355 |
|
10 |
11.5 |
17.3 |
80 |
I 6,I 16B10-0.5/650-10 |
315 |
405 |
|
10 |
11.2 |
20.90 |
80 |
I 6,I 16B10-0.6/600-10 |
305 |
395 |
|
15 |
6 |
16.9 |
12.54 |
70 |
I 6,I 16B15-0.6/600-6 |
415 |
490 |
|
10 |
14.72 |
17.3 |
80 |
I 6,I 16B15-0.5/760-10 |
405 |
575 |
|
10 |
15.0 |
28.1 |
80 |
I 6,I 16B15-0.8/600-10 |
400 |
570 |
|
14 |
15.6 |
39.3 |
100 |
I 6,I 16B15-0.8/700-14 |
505 |
680 |
|
20 |
6 |
21.7 |
8.21 |
50 |
I 6,I 16B20-0.4/800-6 |
540 |
710 |
|
10 |
21.0 |
20.90 |
80 |
I 6,I 16B20-0.6/800-10 |
555 |
735 |
|
14 |
20.9 |
39.30 |
100 |
I 6,I 16B20-0.8/800-14 |
660 |
830 |
|
25 |
10 |
26.6 |
29.90 |
80 |
I 6,I 16B25-0.6/900-10 |
610 |
950 |
|
14 |
26.9 |
39.20 |
100 |
I 6,I 16B25-0.8/900-14 |
720 |
1060 |
|
30 |
10 |
28.2 |
28.10 |
100 |
I 6,I 16B30-0.8/800-14 |
750 |
1180 |
|
14 |
32.2 |
39.20 |
100 |
I 6,I 16B30-0.8/1000-14 |
980 |
1370 |
|
40 |
10 |
45.4 |
35.30 |
100 |
I 6,I 16B40-1.0/900-10 |
1130 |
1515 |
|
14 |
40.2 |
19.4 |
125 |
I 6,I 16B40-1.0/1000-14 |
1200 |
1630 |
|
50 |
10 |
53.9 |
35.3 |
100 |
I 6,I 16B50-1.0/1000-14 |
1360 |
1755 |
|
60 |
10 |
61.05 |
35.3 |
100 |
I 6,I 16B60-1.0/1100-10 |
1920 |
2112 |
|
14 |
60.08 |
49.40 |
125 |
I 6,I 16B60-1.0/1200-14 |
2000 |
2200 |
|
80 |
10 |
81.83 |
35.3 |
100 |
I 6,I 16B80-1.0/1200-10 |
2560 |
2816 |
|
14 |
80.9 |
49.40 |
125 |
I 6,I 16B80-1.0/1400-14 |
2667 |
1934 |
|
100 |
10 |
101.9 |
35.3 |
100 |
I 6,I 16B100-1.0/1300-10 |
3200 |
3520 |
|
14 |
100.06 |
49.40 |
125 |
I 6,I 16B100-1.0/1500-14 |
3333 |
3666 |
|
120 |
10 |
115.5 |
35.3 |
100 |
I 6,I 16B120-1.0/1500-10 |
3870 |
4257 |
|
14 |
119.0 |
49.40 |
125 |
I 6,I 16B120-1.0/1700-14 |
4020 |
4422 |
|
130 |
14 |
128.80 |
49.4 |
125 |
I 6,I 16B130-1.0/1750-14 |
4241 |
4665 |
|
18 |
129.09 |
63.5 |
150 |
I 6,I 16B130-1.0/1967-18 |
4462 |
4908 |
|
150 |
14 |
148.1 |
49.4 |
125 |
I 6,I 16B150-1.0/1890-14 |
4702 |
5172 |
|
18 |
148.2 |
63.5 |
150 |
I 6,I 16B150-1.0/2010-18 |
4962 |
5458 |
|
公称换热面积m2 |
通道间距mm |
计算换热面积 m2 |
流 速
1m/ces时
处理量
m3/h |
接管公称直径 |
型 号 |
重量(kg) |
|
I 6T型 |
I 16T型 |
|
6 |
6 |
6.5 |
8.2 |
50 |
I 6, I 16T6-0.4/500-6 |
230 |
280 |
|
10 |
5.8 |
13.7 |
70 |
I 6, I 16T6-0.4/600-10 |
285 |
350 |
|
8 |
6 |
8.7 |
8.2 |
50 |
I 6, I 16T8-0.4/600-6 |
370 |
430 |
|
10 |
7.7 |
17.3 |
80 |
I 6, I 16T8-0.5/660-10 |
395 |
454 |
|
10 |
8.7 |
13.7 |
70 |
I 6, I 16T8-0.4/700-10 |
405 |
465 |
|
10 |
6 |
9.9 |
12.5 |
70 |
I 6, I 16T10-0.6/500-6 |
335 |
395 |
|
10 |
9.2 |
17.30 |
80 |
I 6, I 16T10-0.5/660-10 |
472 |
543 |
|
10 |
8.8 |
20.9 |
80 |
I 6, I 16T10-0.6/600-10 |
410 |
495 |
|
15 |
6 |
12.5 |
8.2 |
50 |
I 6, I 16T15-0.4/700-6 |
510 |
580 |
|
10 |
14.64 |
17.30 |
80 |
I 6, I 16T15-0.5/800-10 |
679 |
781 |
|
10 |
13.3 |
20.9 |
80 |
I 6, I 16T15-0.6/700-10 |
575 |
680 |
|
14 |
13.8 |
29.2 |
100 |
I 6, I 16T15-0.6/800-14 |
640 |
755 |
|
20 |
6 |
19.0 |
12.5 |
70 |
I 6, I 16T20-0.6/700-6 |
730 |
845 |
|
10 |
18.3 |
28.1 |
80 |
I 6, I 16T20-0.8/800-10 |
735 |
870 |
|
14 |
18.5 |
39.3 |
100 |
I 6, I 16T20-0.8-800-14 |
810 |
960 |
|
25 |
10 |
23.1 |
28.1 |
100 |
I 6, I 16T25-0.8/800-10 |
935 |
1120 |
|
14 |
23.3 |
49.4 |
125 |
I 6, I 16T25-1.0/800-14 |
1000 |
1165 |
|
30 |
10 |
29.0 |
35.3 |
100 |
I 6, I 16T30-1.0/800-10 |
1190 |
1470 |
|
14 |
28.1 |
59.4 |
125 |
I 6, I 16T30-1.2/800-14 |
1170 |
1425 |
|
40 |
10 |
40.9 |
20.9 |
80 |
I 6, I 16T40-0.6/1200-10 |
1725 |
1885 |
|
14 |
42.3 |
39.3 |
100 |
I 6, I 16T40-0.8/1200-14 |
1845 |
2110 |
|
18 |
44.9 |
63.5 |
150 |
I 6, I 16T40-1.0/1200-18 |
2075 |
2405 |
|
50 |
10 |
46.2 |
35.5 |
100 |
I 6, I 16T50-1.0/1000-10 |
1800 |
2085 |
|
14 |
53.2 |
49.4 |
125 |
I 6, I 16T50-1.0/1200-14 |
2490 |
2595 |
|
18 |
54.0 |
76.3 |
150 |
I 6, I 16T50-1.2/1200-18 |
2435 |
2820 |
|
60 |
10 |
56.8 |
20.9 |
80 |
I 6, I 16T60-0.6/1400-10 |
2330 |
2635 |
|
14 |
60.7 |
39.3 |
100 |
I 6, I 16T60-0.8/1400-14 |
2595 |
2850 |
|
18 |
59.6 |
63.5 |
150 |
I 6, I 16T60-1.0/1400-18 |
2730 |
3150 |
|
80 |
10 |
76.4 |
28.1 |
100 |
I 6, I 16T80-0.8/1400-10 |
2970 |
4060 |
|
14 |
78.6 |
39.3 |
100 |
I 6, I 16T80-0.8/1600-14 |
3120 |
3605 |
|
18 |
82.0 |
63.5 |
150 |
I 6, I 16T80-1.0/1600-18 |
3580 |
4205 |
|
100 |
10 |
101.4 |
28.1 |
100 |
I 6, I 16T100-0.8/1600-10 |
3905 |
4330 |
|
14 |
98.8 |
49.4 |
125 |
I 6, I 16T100-1.0/1600-14 |
4040 |
4585 |
|
18 |
98.8 |
76.3 |
150 |
I 6, I 16T100-1.2/1600-18 |
4200 |
4930 |
|
120 |
10 |
115.5 |
42.5 |
125 |
I 6, I 16T120-1.2/1400-10 |
4350 |
4980 |
|
14 |
119.0 |
59.4 |
125 |
I 6, I 16T120-1.2/1600-14 |
4770 |
5440 |
|
150 |
14 |
149.15 |
59.4 |
125 |
I 6, I 16T150-1.2/1800-14 |
6431 |
7396 |
|
18 |
149.86 |
76.3 |
150 |
I 6, I 16T150-1.2/2000-18 |
6643 |
7639 |
|
20 |
147.6 |
83.81 |
150 |
I 6, I 16T150-1.2/2050-20 |
6769 |
7784 | |
|
|
|
